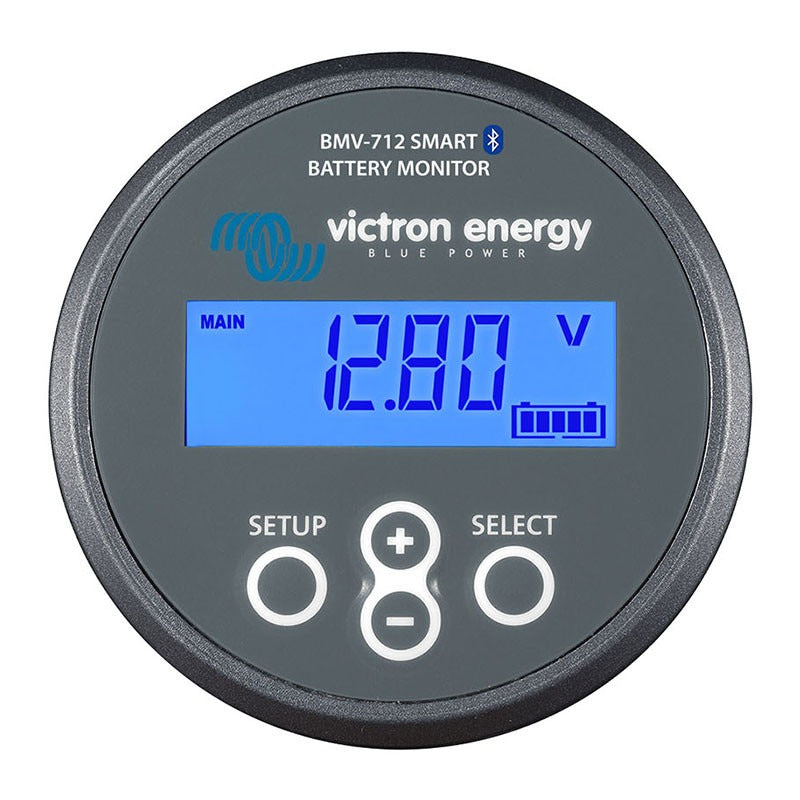

The Victron BMV-712 Smart is a next-generation battery monitor designed to give you precise control over your power system. Featuring Bluetooth Smart connectivity, it allows remote configuration and monitoring via the VictronConnect app, making it ideal for off-grid solar, RV, campervan, boat, and marine battery systems.

With real-time tracking of voltage, current, state of charge (SOC), power consumption, and more, the BMV-712 Smart ensures your batteries are managed safely and efficiently – reducing downtime, increasing lifespan, and helping prevent deep discharges or overcharging.

 Key Features

• Real-time monitoring of:
  • Battery voltage, current, power (W), amp-hours, SOC (%), and time to empty
• Bluetooth Smart integration for wireless configuration and monitoring via VictronConnect
•  Second battery voltage monitoring
•  Optional temperature or midpoint monitoring
•  Custom alarm and relay triggers for auto-generator start or load disconnect
•  Compatible with Victron GX Devices (e.g., Color Control GX)

 Technical Specifications

• Voltage range: 6.5 – 70 VDC
• Current accuracy: ±0.4%
• SOC accuracy: ±0.1%
• Battery capacity range: 1 – 9999 Ah
• Relay output: 60V / 1A, NO
• Temperature range: -40°C to +50°C
• Front bezel size: 69 x 69 mm
• Mounting hole: 52 mm
• Shunt: 500A / 50mV included
• IP rating: IP55 (front panel only)

 In the Box

• BMV-712 Battery Monitor
• 500A Shunt
• 10m RJ12 UTP cable
• Fused power cable
• Mounting ring & screws

 Ideal For:

• Off-grid solar systems
• Motorhomes, campervans, and RVs
• Marine applications (boats, yachts)
• Backup and hybrid battery banks
• Remote monitoring setups with Victron GX hardware
