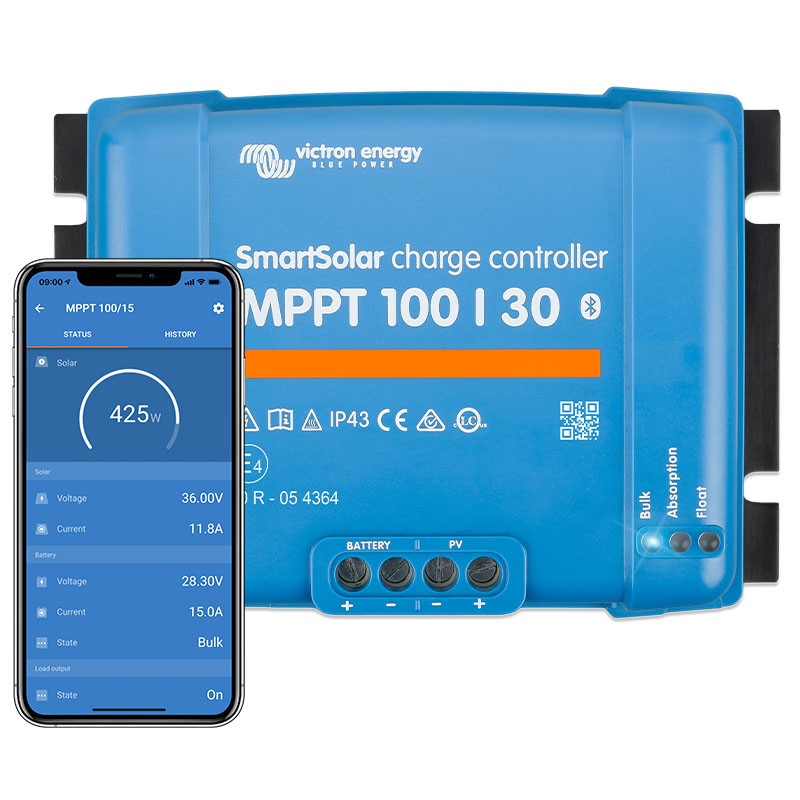

SmartSolar MPPT 100/30

The SmartSolar MPPT 100/30 from the renowned Victron Energy brand is a versatile charge controller that utilizes the latest technologies to ensure maximum efficiency in solar systems. Its advanced functionality allows for automatic voltage selection between 12V and 24V, as well as support for high input voltages up to 100V, significantly increasing the flexibility of solar system configurations. With a built-in Bluetooth interface, users can conveniently monitor and program the device via smartphone, making this controller exceptionally easy to use and manage. High Input Voltage – More Configuration Options One of the key features of the SmartSolar MPPT 100/30 is its support for input voltages up to 100V, allowing for easier use with higher-voltage solar panels. This allows the controller to work with a wider range of panels, giving users greater freedom in designing and installing their photovoltaic system. This flexibility allows for more efficient use of available space and power.

Fast and Safe Charging with a Maximum Current of 30A

The controller offers a maximum charging current of 30A, which is ideal for medium-sized solar installations. This makes the battery charging process faster and safer, and the device can deliver the appropriate amount of energy even in difficult weather conditions. SmartSolar 100/30 ensures that the batteries are charged optimally and without the risk of overloading.

Advanced Charging Algorithms – Maximizing Efficiency

Using MPPT (Maximum Power Point Tracking) technology, the SmartSolar 100/30 controller automatically adapts to changing lighting conditions, maximizing energy yield from the solar panels. This advanced solution provides 10–30% higher efficiency than traditional PWM charge controllers, which is especially important on days with lower sunlight or in partially shaded areas.

Battery Life Algorithm – Protecting and Extending Battery Life

The controller is equipped with an intelligent Battery Life algorithm that monitors battery health and automatically adjusts the charging process to prevent undercharging. This algorithm adjusts load disconnect thresholds, ensuring the battery is regularly charged to its full capacity. This protects the batteries from excessive discharge, significantly extending their lifespan and improving the efficiency of the solar system.

Three-Stage Charging Process – Optimizing Every Cycle

The SmartSolar MPPT 100/30 uses a three-stage charging process that ensures maximum battery charge safely and efficiently:

1. Bulk Mode – fast charging with maximum current to charge the battery as quickly as possible.
2. Absorption Mode – stabilizes charging with constant current until the battery draws less current.
3. Float Mode – maintains the voltage at a resting level to prevent overcharging the battery.

Monitoring and Programming – Full Control with Bluetooth

Thanks to the built-in Bluetooth module, the user can conveniently monitor and program the SmartSolar MPPT 100/30 without the need for a power supply. Physical access to the device. The VictronConnect smartphone app allows you to monitor battery voltage, solar panel performance, and other key parameters, providing full control over your solar system from anywhere.

Reliability and Safety – Protecting Your System

The SmartSolar 100/30 controller is designed with maximum safety in mind. Built-in safeguards protect the system against reverse polarity, short circuits, and overheating, making the device reliable even in the most demanding conditions. With an IP43 rating for the electronic components and an IP22 rating for the connection area, the controller can operate in harsh environmental conditions, ensuring long-term protection and reliability.

Technical Specifications

• Battery Voltage: 12/24 V (auto-select)
• Nominal Charging Current: 30 A
• Nominal PV Power:
  • 12V: 440 W
  • 24V: 880 W
• Maximum PV Open Circuit Voltage: 100 V
• Maximum PV Short Circuit Current: 35 A
• Maximum Efficiency: 98%
• Self-Consumption:
  • 12 V: 30 mA
  • 24 V: 20 mA
• Absorption charging voltage: 14.4 V / 28.8 V (adjustable)
• Float charging voltage: 13.8 V / 27.6 V (adjustable)
• Charging algorithm: Multi-stage adaptive
• Temperature compensation: -16 mV / °C or -32 mV / °C
• Protection:
  • PV reverse polarity
  • Output short circuit
  • Overtemperature
• Operating temperature: -30 to +60 °C (full rated power up to 40 °C)
• Humidity: 95%, non-condensing

Other

• Color: Blue (RAL 5012)
• Power terminals: 16 mm² / AWG6
• Protection category:
  • IP43 (electronic components)
  • IP22 (connection area)
• Weight: 1.3 kg
• Dimensions (H x W x D): 130 x 186 x 70 mm

Safety

• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

The SmartSolar MPPT 100/30 is the ideal solution for those looking for an efficient and reliable charge controller for mid-sized photovoltaic systems. Thanks to advanced technology, high efficiency, and numerous protection features, this controller ensures optimal performance and long battery life, making it an excellent choice for both new installations and retrofits.
