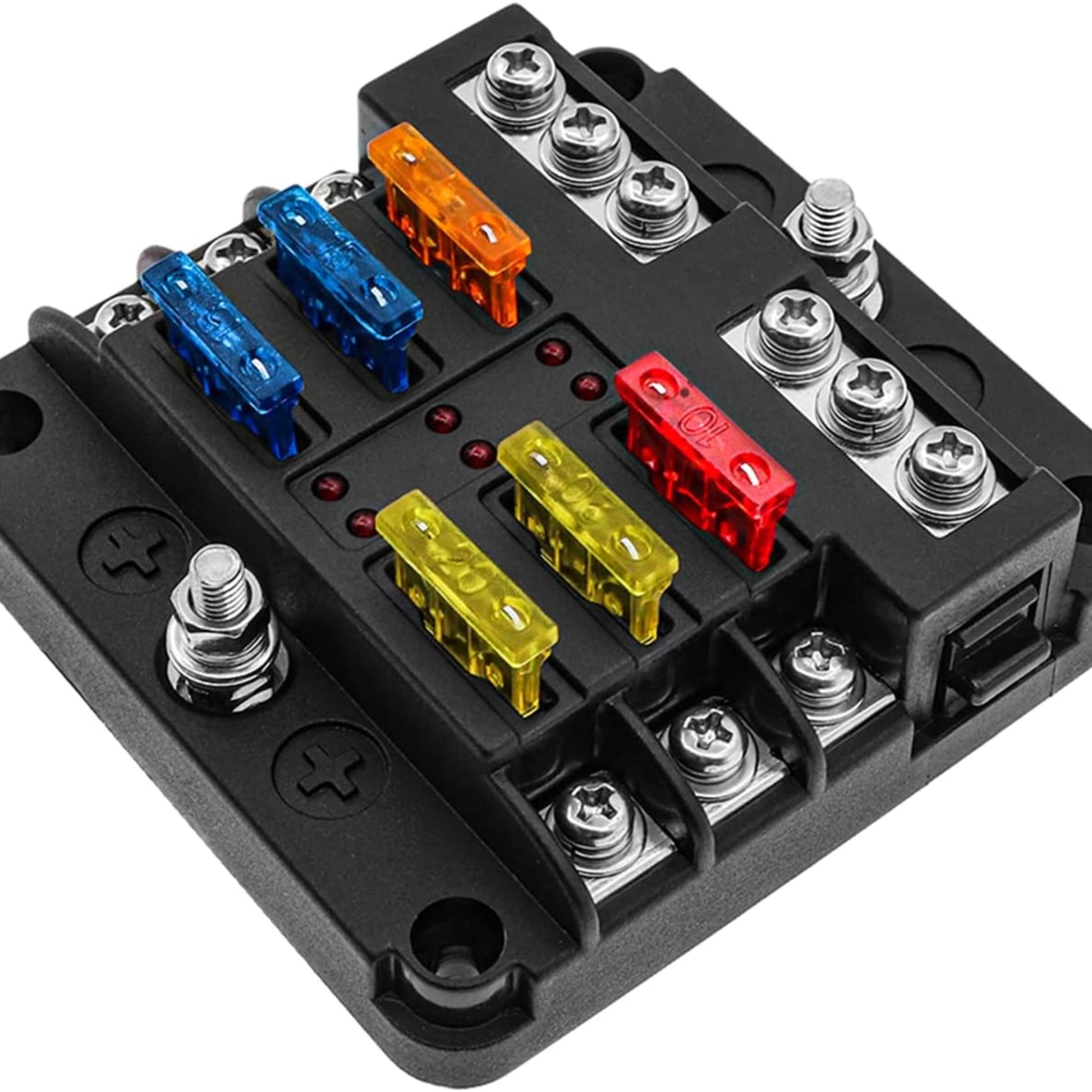

KAOLALI 6-Way Blade Fuse Box – 12V Waterproof Distribution Panel

This marine-rated fuse box combines visual fault detection with heavy-duty protection for your campervan, boat, or overland vehicle.

LED Warning System – Glows red when fuses blow
100A Max Capacity (30A per circuit)
Stainless Steel Terminals – Marine-grade durability

Vanlife-Smart Features

• 6 ATC/ATO Fuse Slots – Includes assorted fuses (5A-20A)

• Positive/Negative Busbars – Clean 12V distribution

• Peel-and-Stick Mounting – Easy DIY installation

• Compact Size: 88×85×36mm – Fits tight spaces

Technical Specs

• Voltage: 12V DC

• Material: PBT plastic (UL94 V-0 rated)

• Terminals: 304 stainless steel

• Included: 12 fuses (5A/10A/15A/20A) + mounting hardware

Installation Made Simple

1. Mount with screws or adhesive pad

2. Connect to battery (max 100A input)

3. Wire your accessories (max 30A per circuit)

4. The LED will glow red if any fuse blows

⚠ Pro Tip: Use dielectric grease on terminals for saltwater protection

Package Includes

• 6-way fuse box
• 12 assorted blade fuses
