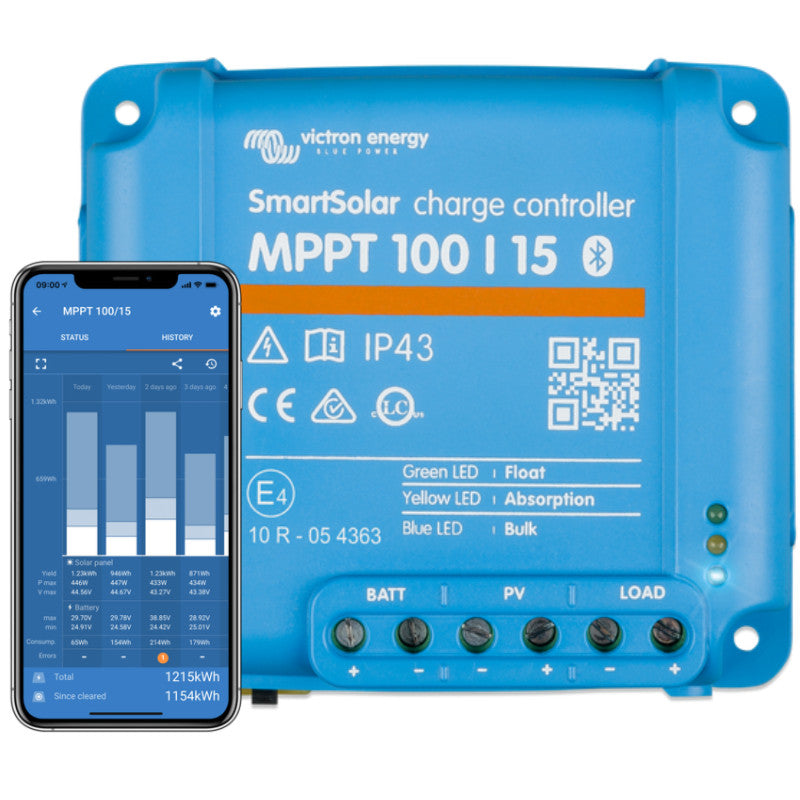

The Victron SmartSolar MPPT 100/15 is a compact yet powerful charge controller designed for small to medium-sized solar systems. Featuring advanced MPPT (Maximum Power Point Tracking) technology, it maximizes energy harvest from your solar panels—even in low light or partial shade. With intelligent battery management, safety features, and broad compatibility, it’s the ideal controller for off-grid, RV, marine, and residential solar setups.

Advanced MPPT Charging for Optimal Energy Use

This smart controller offers:

• Ultra-efficient MPPT tracking (up to 98% peak efficiency)
• Automatic 12V/24V battery voltage detection
• Up to 15A of charging current
• Maximum PV input voltage of 100V

Its intelligent MPPT algorithm adjusts in real time to extract the most power from your panels, even in changing weather. This ensures up to 30% higher efficiency compared to traditional PWM controllers.

Smart Battery Management & System Protection

• Multi-stage charging: Bulk, Absorption, Float
• Adaptive Battery Life algorithm to extend battery lifespan
• Built-in temperature sensor for voltage compensation
• Protection against overcharging, deep discharge, overheating, and short circuits

The controller automatically disconnects and reconnects loads based on battery voltage to prevent damage and maintain long-term performance.

Simple Integration & Optional Smart Features

• VE.Direct port for connection to GX devices and monitoring
• Works with Victron Smart Battery Sense for wireless voltage and temp sensing
• Optional MPPT Control display and BMV monitors

Specifications

• Max PV input voltage: 100V
• Charging current: 15A
• Max PV power: 220W (12V), 440W (24V)
• Operating temp: -30°C to +60°C
• Dimensions: 100 x 113 x 50 mm
• Protection class: IP43 (electronics), IP22 (connection area)

Whether you’re powering a campervan, cabin, or small home system, the SmartSolar MPPT 100/15 delivers efficient, safe, and smart solar charging every day.
