Smart Battery Monitoring for Off-Grid Power Systems

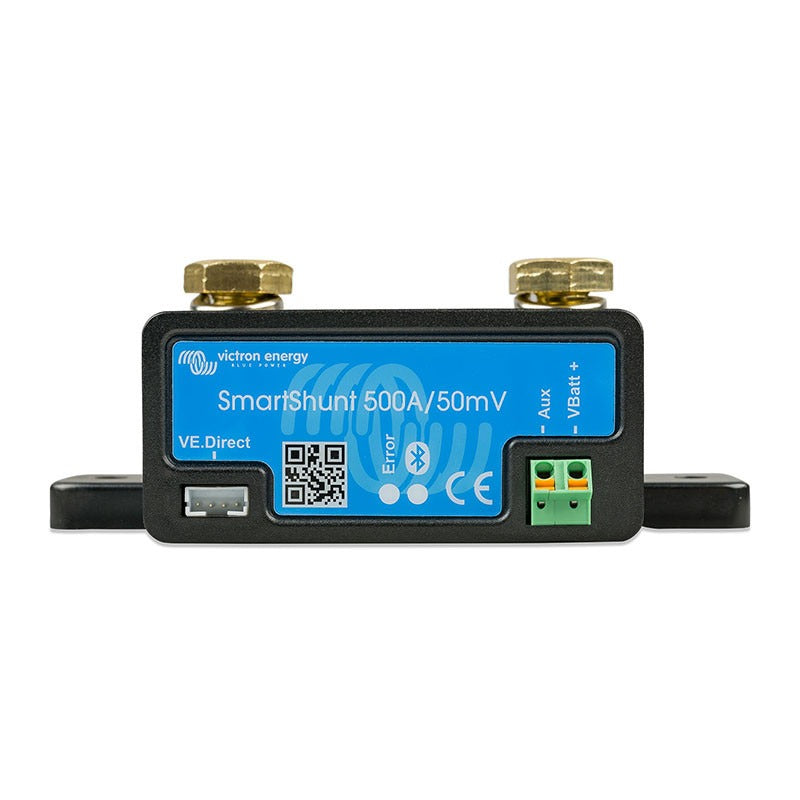

The Victron Energy SmartShunt 500A is a high-precision battery monitor designed for campervans, motorhomes, boats, and off-grid energy systems. With Bluetooth connectivity and no need for a display, it offers compact, wireless monitoring of your battery bank using the VictronConnect app—making it ideal for clean and modern power installations.

All-in-One Battery Monitoring: Wireless, Accurate, and Compact

This powerful shunt-based monitor provides:

• Real-time monitoring via Bluetooth
• Highly accurate tracking of voltage, current, power, and charge level
• Historical data insights such as average discharge, depth of discharge, and time remaining
• Optional second battery voltage, midpoint, and temperature tracking

Thanks to its high resolution and precision (±0.01 A for current), the SmartShunt ensures reliable insight into your power usage and battery health.

Designed for Smart Energy Systems

• Fully app-controlled – no display needed
• Compatible with 12V, 24V, and 48V systems
• Minimal energy draw (<1mA current consumption)
• Wide input voltage range (6.5–70 VDC)
• VE.Direct port for integration with GX systems (Color Control GX or Cerbo GX)

Rugged & Space-Saving Design

• Compact form factor for tight installations
• Operating temperature: -40°C to +50°C
• IP21 protection
• Mounting via robust M10 shunt connection screws

Perfect for van builds, marine systems, and off-grid solar setups where clean wiring, minimal power use, and full control are key.

Ideal For:

• Campervans & RVs
• Marine battery systems
• Off-grid solar power setups
• Industrial battery monitoring
