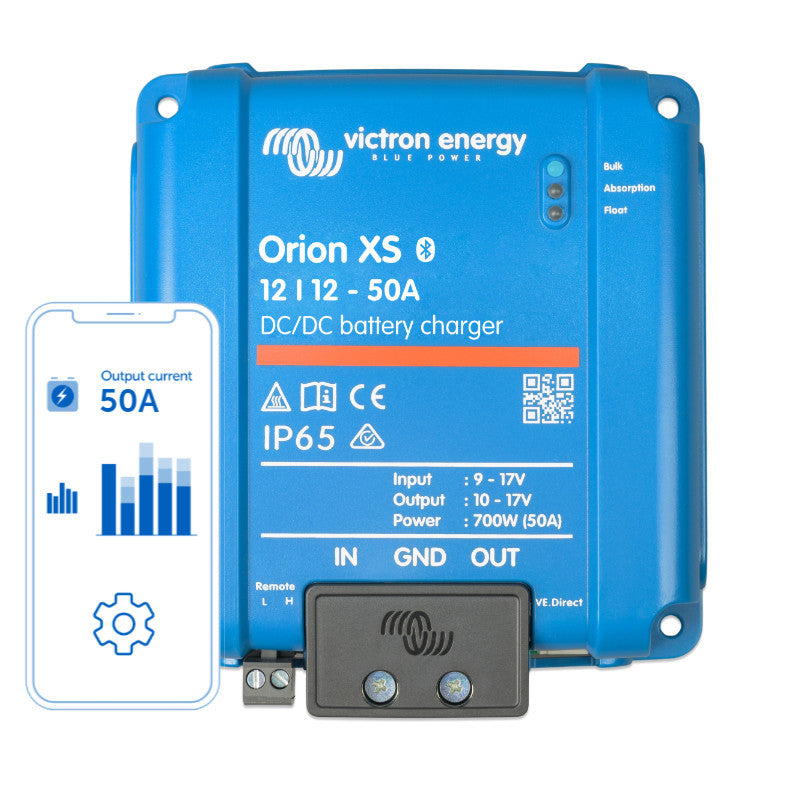

Victron Orion XS 12/12-50A DC-DC Battery Charger

Orion-XS 12/12-50A DC-DC Charger

The Orion XS is a modern DC-DC charger designed for systems with a smart alternator and two batteries. It enables efficient and safe charging in vehicles, boats, and RVs, even with voltage drops on long cables. Protects the starter battery from discharging – it automatically shuts off at low input voltage and low temperature (important for lithium batteries). It turns on again when the input voltage returns to a safe level. Remote on/off control via the connector or the VictronConnect app. Compatible with battery management systems (BMS). Equipped with overload, short circuit, and overheating protection. Automatically limits output power when the maximum temperature is reached. IP65-compliant housing – dustproof and resistant to heavy rainfall.

Key Features:

• Engine Detection Mechanism

The integrated mechanism detects whether the engine is running and only activates the charger when the alternator is supplying power.

• Bluetooth Smart

Wireless configuration, monitoring, and updates via the VictronConnect app on smartphones and tablets.

• Advanced Charging Algorithms

Fully programmable charging profiles and eight presets for various battery types, including lithium batteries.

Technical Specifications:

Model: Orion XS 12/12-50A DC-DC Battery Charger

• Input Voltage Range: 9–17V
• Output Voltage Adjustment Range: 10–17V
• Output Voltage Tolerance: +/- 0.25% (max.)
• Output Voltage Distortion: 10mV rms
• Input and Output Current Adjustment Range: 1–50A
• Max. Continuous short circuit current C: 50 A Continuous output power (up to 40 °C): 700 W Maximum efficiency: 98.5% No-load current consumption: Less than 100 mA Standby current consumption: Less than 1.5 mA ul> Communication ports VictronConnect / Bluetooth Smart app: Yes VE.Smart Networking: Yes VE.Direct (including DVCC): Yes

Other

• Operating temperature range: -20 to +60 °C (1.5%/°C derating above 40 °C)
• Humidity: Max. 95% non-condensing
• DC connection: Screw terminals
• Maximum wire cross-section: 4 AWG (21.2 mm²)
• Weight: 0.330 kg (0.73 lb)
• Dimensions (H x W x D): 137.3 x 123.1 x 40 mm
• Protection Rating: IP65

Standards

• Safety: IEC 62477-1
• Emissions: IEC 61000-6-3, EN 55014-2
• Immunity: IEC 61000-6-2, IEC 61000-6-1, EN 55014-2
• Automotive Directive: ECE R10-5 (in development)
• Instant Data Reading: The VictronConnect app displays warnings and status without the need to connect to a device.
• VE.Direct and DVCC: Enables wired connection to Cerbo GX, Ekrano GX, a computer, or a VRM portal – for advanced monitoring and control locally or remotely.
