Victron Energy Ekrano GX – Advanced System Monitoring with 7” Touchscreen

Centralised Control for Advanced Energy Systems

The Ekrano GX is Victron Energy’s most advanced GX monitoring device, combining a high-resolution 7-inch touchscreen with powerful system integration and remote management capabilities. It provides a single, central interface to monitor, control, and optimise complex energy systems in real time.

Ideal for campervans, motorhomes, off-grid systems, marine installations, and professional energy setups.

Full Remote Monitoring via VRM Portal

When connected to the internet (Ethernet or Wi-Fi), the Ekrano GX enables full remote access through the Victron Remote Management (VRM) portal. From anywhere in the world, you can:

• Monitor battery state of charge

• Track energy consumption and production

• Control generators and solar systems

• View alarms, logs, and system history

Remote diagnostics and configuration reduce the need for physical access to the system.

Wide Connectivity & Full System Integration

The Ekrano GX offers extensive connectivity, allowing seamless integration with the entire Victron ecosystem:

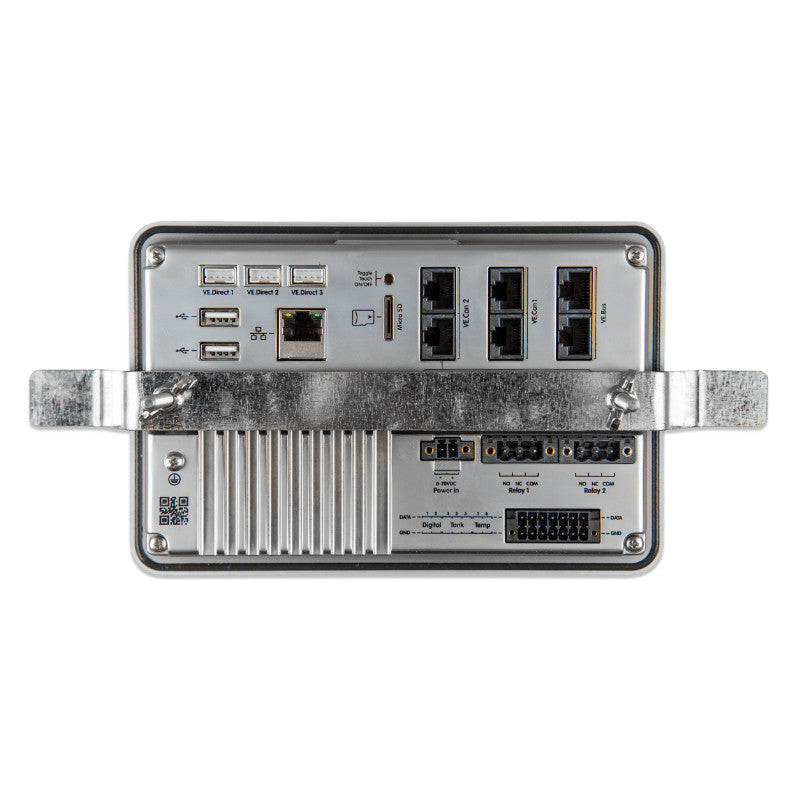

Communication Interfaces

• VE.Direct: 3 isolated ports (up to 25 devices)

• VE.Bus: 1 isolated bus (2× RJ45)

• VE.Can: 2 isolated CAN buses

• Ethernet: Yes

• Wi-Fi: Yes

• Bluetooth Smart: Yes

This allows direct connection to inverters, chargers, MPPTs, battery monitors, BMS systems, and more.

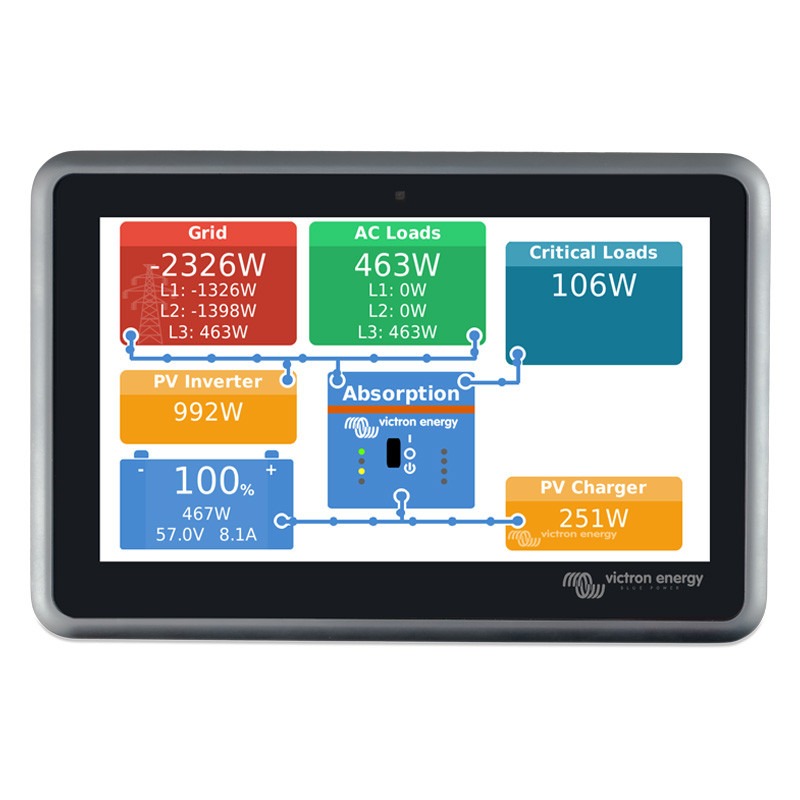

Touchscreen with Security Control

• 7” capacitive touchscreen (1024 × 600 px)

• Excellent visibility with 1000 cd/m² brightness

• Automatic or manual brightness adjustment via ambient light sensor

• Touch On/Off recessed button on the rear to prevent unauthorised use

All key system parameters are accessible from a single, intuitive interface.

Extended Monitoring Inputs

The Ekrano GX supports monitoring beyond electrical data:

• 3 resistive tank level inputs

• 2 temperature sensor inputs

• 2 digital inputs

This makes it ideal for campervans and boats where water tanks, fuel levels, and temperatures must be monitored centrally.

Designed for Reliable Operation

• Wide DC input voltage range: 8–70 V

• Low power consumption

• Integrated buzzer for alarms

• microSD slot for data logging (up to 32 GB)

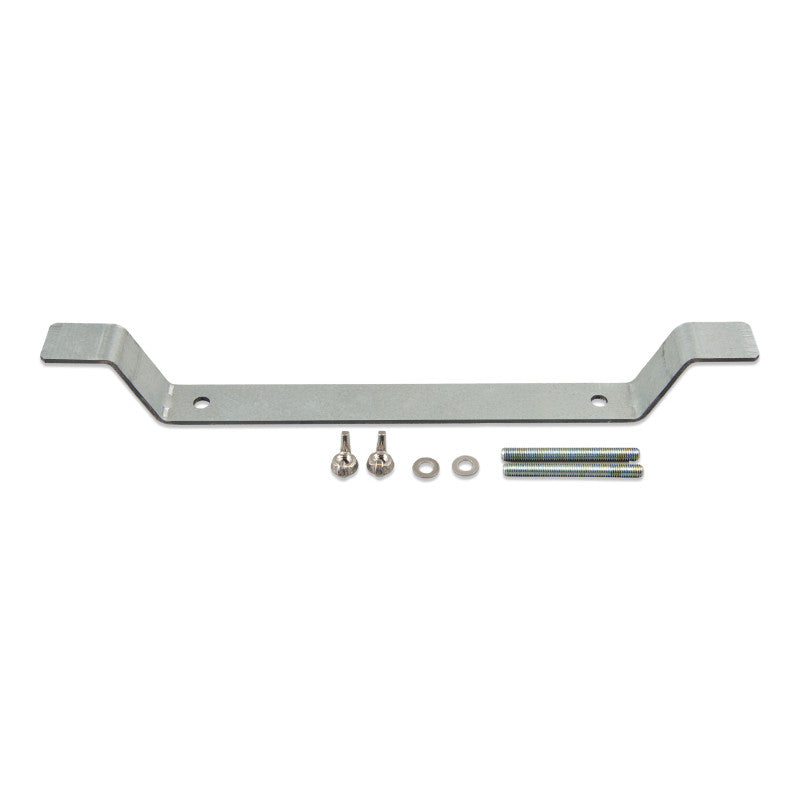

• Front protection up to IP54 (with steel bracket)

Built for demanding mobile and off-grid environments.

Technical Specifications

Power

Communication

Inputs / Outputs

Display & Protection
