Smart Control & Monitoring for Off-Grid, Solar, Marine & Industrial Systems

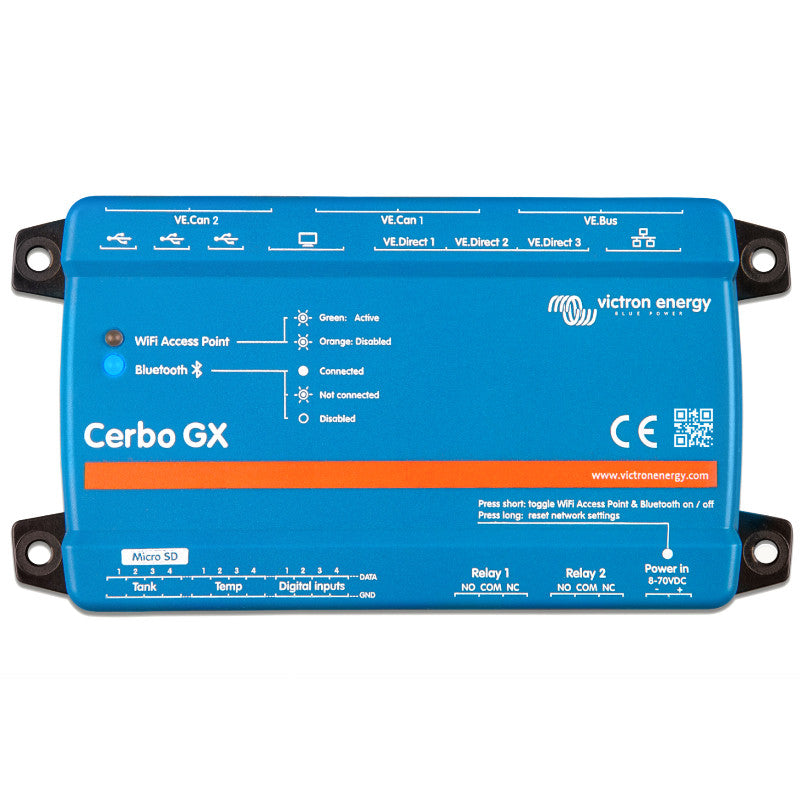

The Victron Cerbo GX MK2 is an advanced communication and control center designed to give you real-time insight, management, and optimization of your entire Victron energy system. Whether you're powering an off-grid cabin, a campervan, a yacht, or a commercial setup, the Cerbo GX MK2 connects all your Victron devices for intelligent monitoring and remote access.

Paired with the GX Touch screen or the Victron VRM portal, this unit acts as the “brain” of your power system—bringing together inverters, solar chargers, batteries, tank sensors, and more into one unified platform.

Key Features & Benefits

Total System Visibility & Control

• Real-time monitoring of battery state, solar production, energy flow, and more
• Control key system components like MultiPlus, Quattro, MPPT, and Lynx via a single interface
• Remote access via the Victron Remote Management (VRM) portal
• Local access via built-in Bluetooth, WiFi, or direct Ethernet

Dual-Core Processing for Fast, Responsive Management

• New MK2 version features a powerful dual-core CPU
• Enhanced performance for managing larger and more complex installations

Multiple Connections for Seamless Integration

• 3× VE.Direct ports (isolated) for solar chargers, battery monitors, etc.
• 2× VE.Bus (isolated RJ45) for inverters and inverter/chargers
• 2× VE.Can ports – supports up to 25 MPPTs or NMEA 2000 integration
• 4× Tank level inputs, 4× Temperature sensor inputs, 4× Digital inputs
• 3× USB ports and Ethernet for system expansion and data exchange
• Pulse counting via digital inputs for utility or generator monitoring

Versatile Mounting & Easy Installation

• Rotated RJ-45 ports for easier cable management
• DIN rail mountable (35 mm) or wall mountable
• Wide input voltage range (8V–70V DC) supports diverse DC systems

Designed for Demanding Environments

• Operating temp: -20°C to +50°C
• Compact size: 78 × 154 × 48 mm
• Compliance: IEC 62368-1, EN 301489 EMC, ECE R10-6 (automotive use)

Perfect For:

• Off-grid solar systems
• Campervan or RV energy setups
• Marine installations (with NMEA 2000)
• Energy storage and backup systems
• Industrial or mobile power networks

Technical Specifications
