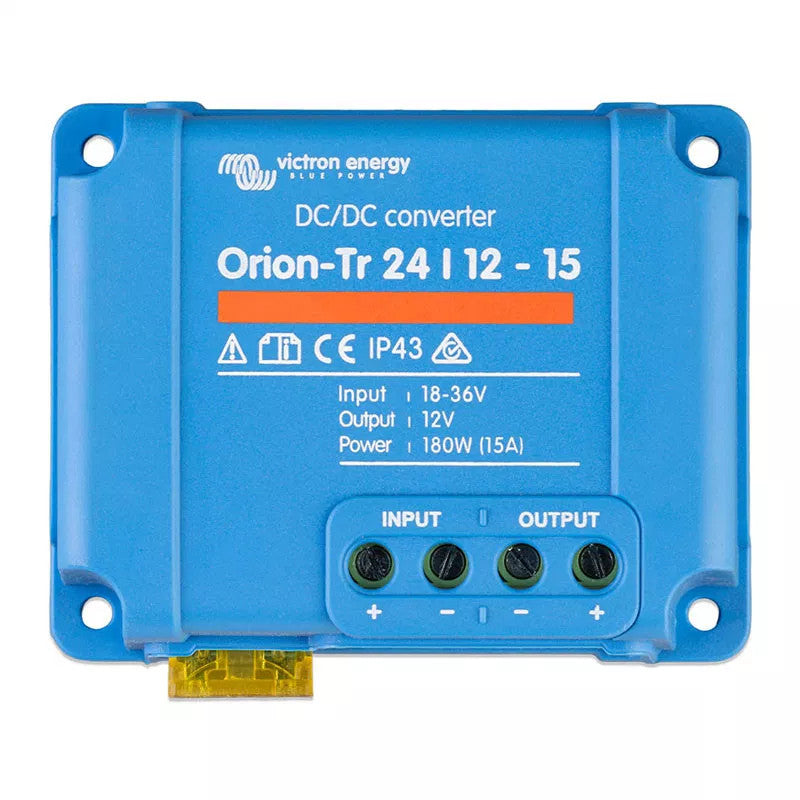

Close The Orion-Tr 24/12-15A (180W) from Victron Energy is an advanced DC voltage converter designed to efficiently convert 24V to a stable 12V, making it an ideal choice for a wide range of applications. With a high efficiency of 97%, the device minimizes energy losses during conversion, which translates into resource conservation and more efficient energy use in photovoltaic systems, recreational vehicles, yachts, and other installations requiring a stable output voltage. Exceptional operating efficiency makes the converter not only economical but also environmentally friendly, reducing energy waste. One of the key advantages of this model is its ease of installation and use. Screw-on terminals and intuitive connectors make installation quick and easy, requiring no specialized tools. Additionally, status indicators allow the user to monitor the inverter's operation in real time, facilitating ongoing maintenance and enabling quick response to any anomalies. Thanks to IP43 protection, the device can operate in harsh environmental conditions while maintaining full performance and reliability. Versatility and Efficiency The Orion-Tr 24/12-15A offers not only energy efficiency but also a wide range of applications. The device can be successfully used in solar power systems, as well as in installations in campers and yachts. By stabilizing the output voltage at 12.7V, the inverter provides power to delicate electronic devices such as communication systems, LED lighting, and other loads that require constant voltage. The maximum output current of 20A ensures the device can handle short-term loads, making it a versatile solution even in more demanding applications. The device is also very energy-efficient in standby mode – an idle current of less than 35 mA ensures the converter consumes minimal energy, which translates into greater efficiency of the entire power supply system, especially in applications where systems operate in standby mode for long periods. Furthermore, thanks to the operating temperature range of -20°C to +55°C, the converter copes well with various climatic conditions, and at loads above 40°C, it automatically reduces its power by 3% per degree Celsius, improving operational safety.

Technical Specifications

• Model: Orion-Tr 24/12-15A 180W
• Input Voltage Range: 18-35 V
• Output Voltage: 12.7 V
• Efficiency: 97%
• Continuous Output Current: 15 A
• Maximum Output Current: 20 A
• Galvanic Isolation: No
• No-Load Current: < 35 mA
• Operating temperature range: -20°C to +55°C (power derate 3% for each °C above 40°C)
• Connector DC Input: Screw-type terminals Maximum Wire Cross-Section: 6 mm² AWG10 Dimensions (H x W x D): 73 x 94 x 45 mm Weight: 0.25 kg Orion-Tr 24/12-15A (180W) is an efficient and reliable voltage conversion solution suitable for a wide range of applications, from solar systems to powering devices in campers and yachts. Its high efficiency, easy installation, and robust construction make it a device designed for long-term operation in harsh environments. With advanced features and status indicators, Orion-Tr is the ideal choice for anyone requiring stable and safe voltage conversion.
