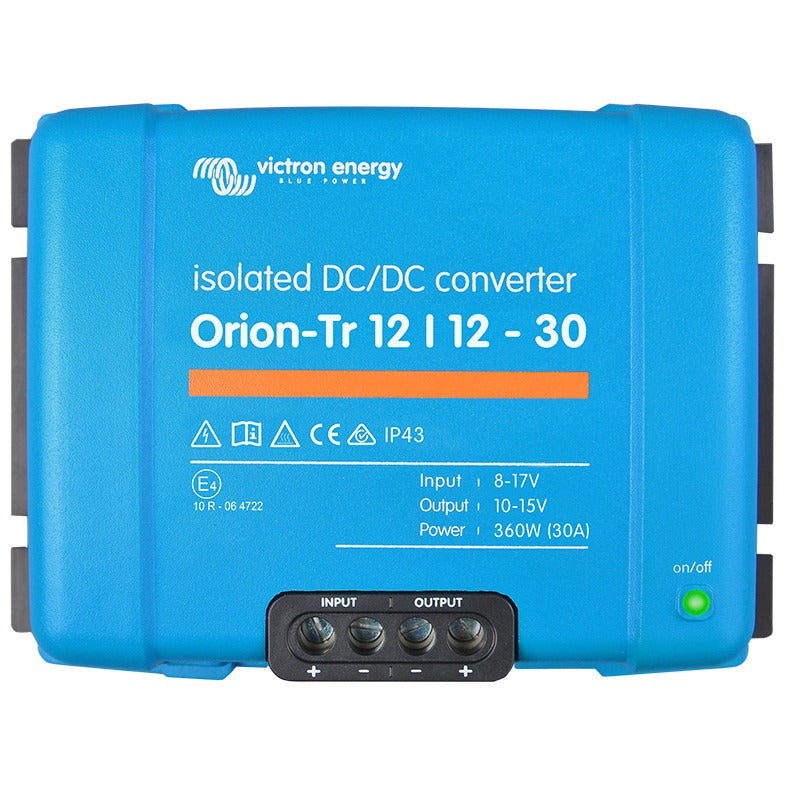

Orion-Tr 12/12-30A (360W)

The Orion-Tr 12/12-30A (360W) from Victron Energy is an advanced device designed to efficiently convert DC voltage from one level to another, making it an ideal solution for power systems in a variety of applications, such as solar systems, RVs, yachts, and commercial vehicles. Its exceptional 87% efficiency ensures minimal energy loss, allowing for maximum utilization of energy resources. This converter operates with a nominal input voltage of 10-17V, and thanks to its intelligent low-voltage shutdown and restart system (7V and 7.5V, respectively), it is perfectly adapted to dynamic power conditions. The Orion-Tr converter is designed for longevity and resistance to harsh operating conditions. Rugged construction and high resistance to mechanical damage and weather conditions make the device ideal for outdoor installations as well as indoors. The moisture-resistant housing with an IP43 protection class ensures trouble-free operation even in unfavorable weather conditions. Screw terminals, which do not require special tools, enable quick assembly and disassembly, significantly simplifying the work of installers.

Versatility and Reliability in Various Applications

Orion-Tr 12/12-30A also features wide output voltage adjustment options, from 10V to 15V, making it an extremely versatile device that can be adapted to the specific requirements of the power supply system. With a stabilized output voltage of 12.2V, the device is ideal for powering delicate electronic devices such as navigation systems, LED lighting, and other devices requiring a stable power source. The maximum output current of up to 40A for 10 seconds allows for the safe handling of short-term overloads, making the converter highly flexible and able to meet higher power requirements. Furthermore, the Orion-Tr converter provides full galvanic isolation between input and output, ensuring safe operation in more advanced installations. Thanks to its very low standby current consumption of less than 80 mA, the device saves energy when not in active use. The operating temperature range from -20°C to +55°C ensures the converter operates smoothly even in extreme environmental conditions, making it an ideal solution for both warmer and colder climates.

Technical Specifications

• Model: Orion TR DC-DC 12/12-30A 360W
• Input Voltage Range: 10-17V
• Under Voltage Shutdown: 7V
• Under Voltage Restart: 7.5V
• Nominal Output Voltage: 12.2V
• Output Voltage Regulation Range: 10-15V
• Output Voltage Tolerance: +/- 0.2V
• Output Noise: 2mV rms
• Output Current at Nominal Voltage and 40°C: 30 A
• Maximum output current (10 s): 40 A
• Short circuit output current: 60 A
• Output power at 25°C: 430 W
• Output power at 40°C: 360 W
• Efficiency: 87%
• No-load input current: < 80 mA
• Remote port shutdown current: < 200uA
• Galvanic Isolation: 200 V DC between input, output, and housing
• Operating Temperature Range: -20°C to +55°C (power derate 3% for each °C above 40°C)
• Humidity: max. 95% non-condensing
• DC Connection: Screw Terminals
• Weight: 1.3 kg
• Dimensions (H x W x D): 130 x 186 x 70 mm
• Safety Standards: EN 60950
• Standards Emissions Standards: EN 61000-6-3, EN 55014-1 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive: ECE R10-5 The Orion-Tr 12/12-30A (360W) converter is a reliable and versatile voltage conversion device suitable for a wide range of applications. Thanks to its high energy efficiency, robust design, and flexible voltage regulation options, the converter is an ideal solution for both solar systems and mobile power installations. Regardless of environmental conditions, the Orion-Tr ensures stable and efficient operation, making it an ideal choice for professionals and individual users.
