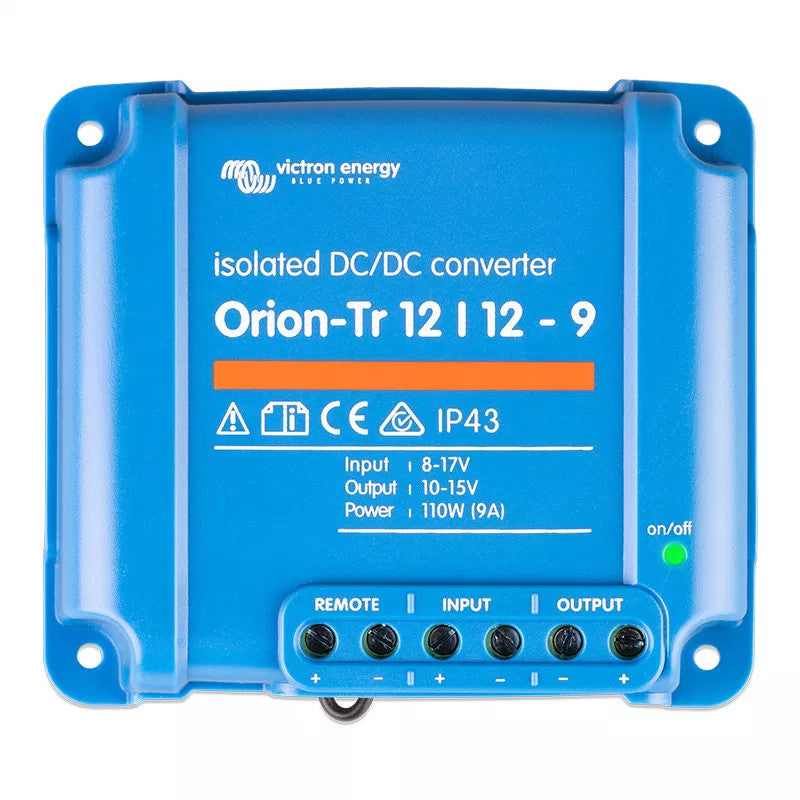

Close The Orion-Tr 12/12-9A (110W) is a modern DC-DC converter from Victron Energy, designed for reliable DC voltage conversion. This device features high efficiency, which translates into minimal energy loss during operation, making it extremely economical and efficient. This ensures stable operation, even under heavy loads, which is important for solar installations, systems in campers, yachts, and commercial vehicles. The converter's high energy efficiency of 85W at an operating temperature of 40°C allows it to power multiple devices with minimal energy consumption, making it an excellent choice for those seeking efficient power supply. The Orion-Tr converter also features a robust construction, ensuring longevity and resistance to harsh operating conditions. The weather-resistant housing, combined with IP43 protection, allows the device to operate safely even in humid environments, which is essential for outdoor installation. Regardless of the conditions, the Orion-Tr guarantees a stable output voltage, which is crucial when powering sensitive electronic devices. Thanks to the screw terminals, installation is quick and easy, requiring no specialized tools. Versatile and Precise Voltage Regulation The Orion-Tr 12/12-9A offers a wide range of applications thanks to its adjustable output voltage of 10-15V, allowing you to tailor the converter's operation to your individual needs. Whether used in photovoltaic systems, on yachts, or in recreational vehicles, the converter provides stable, high-precision voltage, making it ideal for powering sensitive devices. The operating temperature range of -20°C to +55°C allows the device to be used in almost any environmental conditions, which is particularly useful in mobile installations or off-grid systems. Orion-Tr also features very low no-load current consumption, below 50 mA, which is particularly important in installations where the converter operates in standby mode for extended periods. Additionally, the device features galvanic isolation at 200 V DC, ensuring operational safety by protecting the installation from surges and other electrical anomalies. Output noise of only 2 mV rms ensures that Orion-Tr does not interfere with the operation of connected devices, which is crucial for sensitive electronic systems.

Technical Specifications

• Model: Orion TR DC-DC 12/12-9A 110W
• Input Voltage Range: 8-17V
• Under Voltage Shutdown: 7V
• Under Voltage Restart: 7.5V
• Nominal Output Voltage: 12.2V
• Output Voltage Regulation Range: 10-15V
• Output Voltage Tolerance: +/- 0.2V
• Output Noise: 2mV rms
• Output Current at Nominal Voltage and 25°C: 9 A
• Maximum output current (10 s): 12.5 A
• Short circuit output current: 32 A
• Output power at 25°C: 110 W
• Output power at 40°C: 85 W
• No-load input current: < 50 mA
• Remote port shutdown current: < 200uA
• Galvanic Isolation: 200 V DC between input, output, and housing
• Operating Temperature Range: -20°C to +55°C (power derate 3% for each °C above 40°C)
• Humidity: Max. 95% non-condensing
• DC Connection: Screw Terminals
• Weight: 0.42 kg
• Dimensions (H x W x D): 100 x 113 x 47 mm
• Safety Standards: EN 60950
• Standards Emission Standards: EN 61000-6-3, EN 55014-1 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive: ECE R10-5 The Orion-Tr 12/12-9A (110W) converter is a versatile device that will meet the needs of users in various power systems. Thanks to its high efficiency, precise voltage regulation, and robust construction, it is a reliable solution for both professionals and amateurs. Easy installation, low energy consumption, and the ability to operate in harsh environments make the Orion-Tr the ideal choice for those seeking reliable, high-efficiency power.
