Power That Never Freezes – Even in the Harshest Winter Conditions.

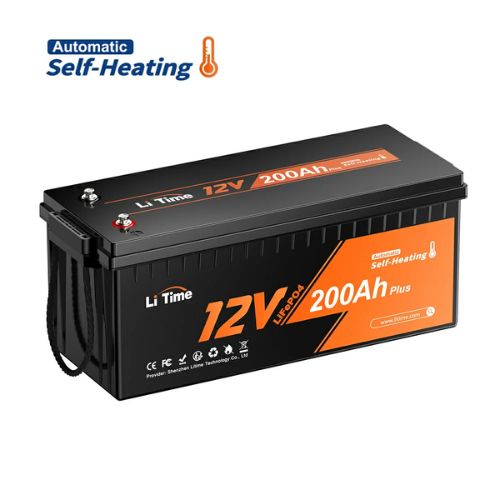

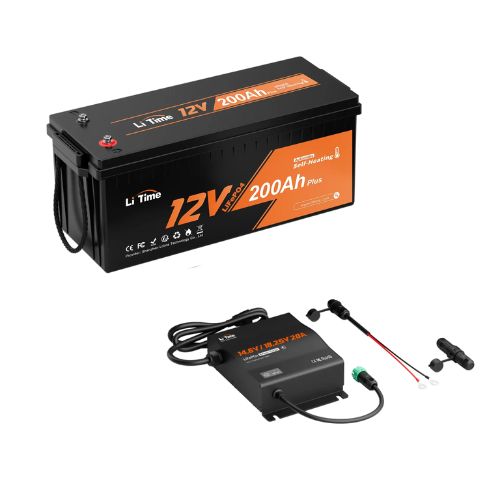

Engineered for cold climates and high-performance needs, the LiTime 12V 200Ah LiFePO4 Battery with self-heating delivers consistent energy output in freezing environments. Its intelligent automatic heating system ensures reliable power delivery, whether you’re camping in the snow, sailing offshore, or powering off-grid systems during winter.

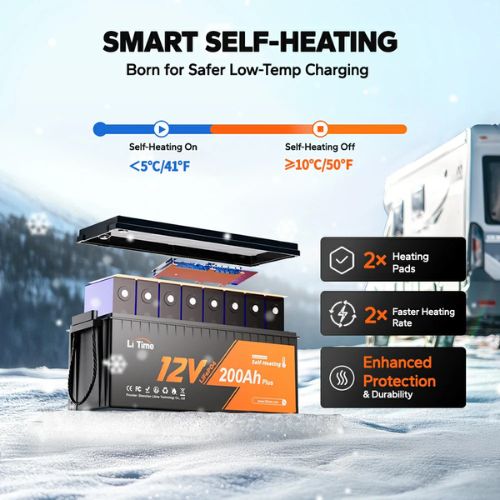

Advanced Self-Heating Technology
-
Fast Warm-Up Performance: Heats from -10°C to 10°C in 80–100 minutes or from -20°C to 10°C in 120–170 minutes for dependable cold-weather operation.
-
Smart Auto-Warm Function: Automatically activates below 5°C, stops at 10°C, maintaining efficient operation throughout the winter.
-
Low-Temperature Protection: Prevents charging below 0°C and disconnects loads below -20°C, extending battery lifespan.
Premium EV-Grade Power Cells
Built with Grade A LiFePO4 cells used in electric vehicles, guaranteeing 4,000+ cycles at 100% DOD and 6,000 cycles at 80% DOD—over 10 years of service life. Protected by a 100A BMS, the battery ensures safe operation with full protection against overcharge, over-discharge, over-current, short circuits, and overheating.
Compact, Safe & Efficient Design
-

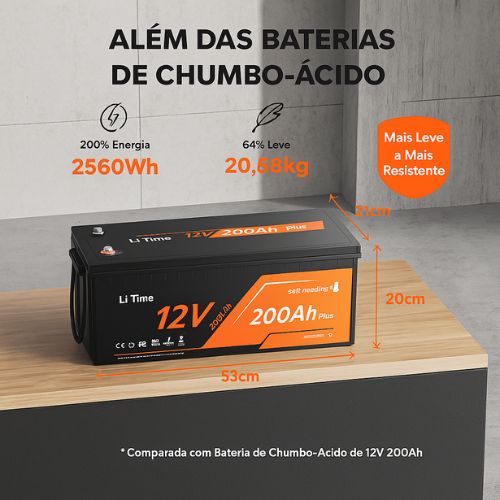

1/3 the Weight and 40% Smaller than traditional lead-acid batteries.
-
Delivers twice the usable energy (2560Wh per unit, expandable up to 40.96kWh in a 4P4S setup).
-
IP65 waterproof and built with durable ABS casing for enhanced protection.
Flexible Charging Options
Recharge your battery easily with three methods:
-
LiFePO4 Charger (12V/14.6V 40A) – Full charge in 5 hours.
-
Solar Panels (≥900W) – Recharge within 1 day.
-
Generator + 40A DC-to-DC Charger – Recharge in 5 hours.
Ideal For
Perfect for off-grid cabins, RVs, campers, boats, solar systems, and trolling motors (30–70 lb). Whether you’re living sustainably or exploring the outdoors, the LiTime 12V 200Ah ensures reliable, eco-friendly, and maintenance-free power anywhere.
⚙️ Specifications
| Category |
Details |
| Battery Type |
LiFePO4 Prismatic |
| Nominal Voltage |
12.8V |
| Capacity |
200Ah |
| Energy |
2560Wh |
| Max Expansion |
4P4S (40.96kWh) |
| Cycle Life |
4,000 cycles @100%DOD / 6,000 @80%DOD / 15,000 @60%DOD |
| Continuous Discharge Current |
100A |
| Peak Discharge Current (5s) |
280A |
| Charging Voltage |
14.4V ±0.2V |
| Recommended Charge Current |
40A (0.2C) |
| Operating Temp (Charge) |
-20°C to 50°C |
| Operating Temp (Discharge) |
-20°C to 60°C |
| Storage Temp |
-10°C to 50°C |
| Auto-Heating Range |
-20°C to 5°C |
| Heating Duration |
80–170 min (depending on temperature) |
| Weight |
19.6 kg |
| Dimensions (L×W×H) |
533×208×216 mm |
| Case Material |
ABS |
| Protection Class |
IP65 |
| Certifications |
UL, FCC, CE, RoHS, UN38.3 |
| Warranty |
5 Years |
Built for Extreme Adventures
From ice fishing trips to winter RV journeys, LiTime’s self-heating battery keeps your power flowing—no matter the temperature. Dependable, efficient, and ready for the cold, this is your ultimate energy companion for any environment.
Power Up Your Van Conversion with VanCowork
Don’t let cold weather—or electrical complexity—freeze your adventure plans.
At VanCowork, we specialize in professional installation of complete electrical systems, including LiFePO4 self-heating batteries like this one. Our experts ensure your setup is efficient, safe, and ready for extreme temperatures — whether for off-grid living, winter travel, or marine use.
Prefer to handle the installation yourself?
You can rent a fully equipped workstation at VanCowork, complete with professional tools, materials, and expert support. We’ll help you connect, configure, and secure your battery system so it performs flawlessly — all while saving you time and avoiding costly mistakes.
Choose VanCowork — where reliable power meets professional craftsmanship.
