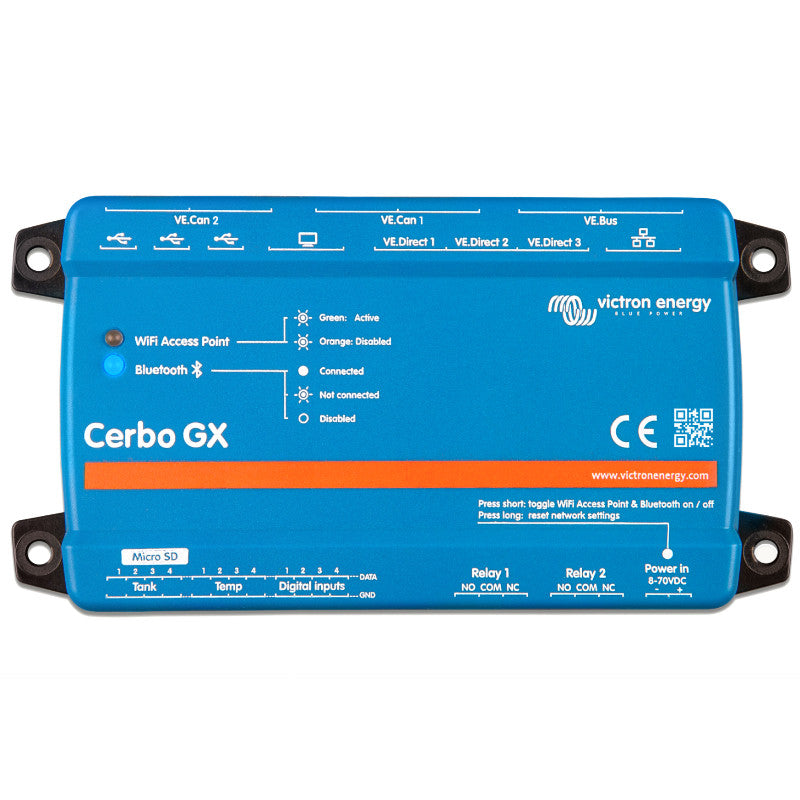

Cerbo GX MK2

Victron Energy presents the advanced Cerbo GX MK2 device, designed for remote monitoring and control of energy systems. Thanks to this device, users can fully utilize the potential of their power installations, gaining insight into key parameters via the internet or the Victron Connect app. The Cerbo GX MK2 works with the interactive GX Touch control panel, providing even greater system management convenience. Innovative solutions such as VE.Can and Bluetooth make system management simple and efficient. Easy DIN rail mounting and a single cable connection minimize the number of cables, simplifying installation and improving the aesthetics of the entire system. Real-time monitoring enables precise tracking of battery charge status, energy consumption, and photovoltaic panel performance. All these features make the Cerbo GX MK2 an indispensable component of any modern energy installation. One of the main advantages of the Cerbo GX MK2 is its dual-core processor, which provides sufficient power to manage even the most complex energy systems. Thanks to advanced options such as the additional CAN-bus port, users have complete control over lithium battery systems, which is crucial for their optimal operation and longevity. This enables effective management both in home and demanding industrial environments. The Cerbo GX MK2 is not only easy to use but also significantly improves the efficiency of the entire system. Thanks to the built-in Bluetooth module, configuration and monitoring can be performed via the VictronConnect app, significantly simplifying system management. Automation and control of backup batteries further enhance system reliability. Versatility and Functionality The Cerbo GX MK2 device is an exceptionally versatile solution, ideal for a variety of applications – from offshore power systems to energy storage and vehicles. Its DIN rail-mountable design allows for easy and flexible adaptation to various systems. Furthermore, remote management via the internet allows for real-time troubleshooting, which is extremely useful in the event of a failure or the need to adjust system settings. The device's ergonomics have been improved by 180-degree rotation of the RJ-45 sockets, making it easier to connect and disconnect cables. Three USB ports provide additional flexibility in integration with other devices. The pulse counting function via digital inputs enables more accurate monitoring of energy consumption, which is an invaluable tool in energy system analysis and optimization. Thanks to improved VE.Can ports, the system can support up to 25 solar panels, making it ideal for larger installations. Full NMEA 2000 compatibility allows for integration with solar networks, further expanding its capabilities. It's also worth mentioning the ecological aspect – the Cerbo GX MK2 supports the use of renewable energy, which helps reduce the carbon footprint and increases energy efficiency.

Technical Specifications

• Parameters / Model: Cerbo GX MK2
• Power Supply Voltage: 8V to 70V DC
• Mounting: Wall Rail or DIN Rail (35mm)
• Communication Ports:
  • VE.Direct (always isolated): 3
  • VE.Bus (always isolated): 2 parallel RJ45 sockets
  • VE.Can: yes, 2 (isolated and non-isolated)
  • BMS-Can Port: no
• Inputs / Outputs:
  • Resistive fuel tank level inputs: 4
  • Temperature sensor inputs: 4
  • Digital inputs: 4
• External dimensions (H x W x D): 78 x 154 x 48 mm
• Operating temperature range: -20 to +50°C
• Safety: IEC 62368-1
• EMC: EN 301489-1, EN 301489-17
• Automotive: ECE R10-6

Cerbo GX MK2 is an advanced device that significantly improves the efficiency of energy systems. Thanks to its versatility and ease of integration, it is suitable for a wide range of applications. Innovative features such as remote management, pulse counting and two VE.Can ports make it the perfect choice for those looking for reliable and efficient solutions.
