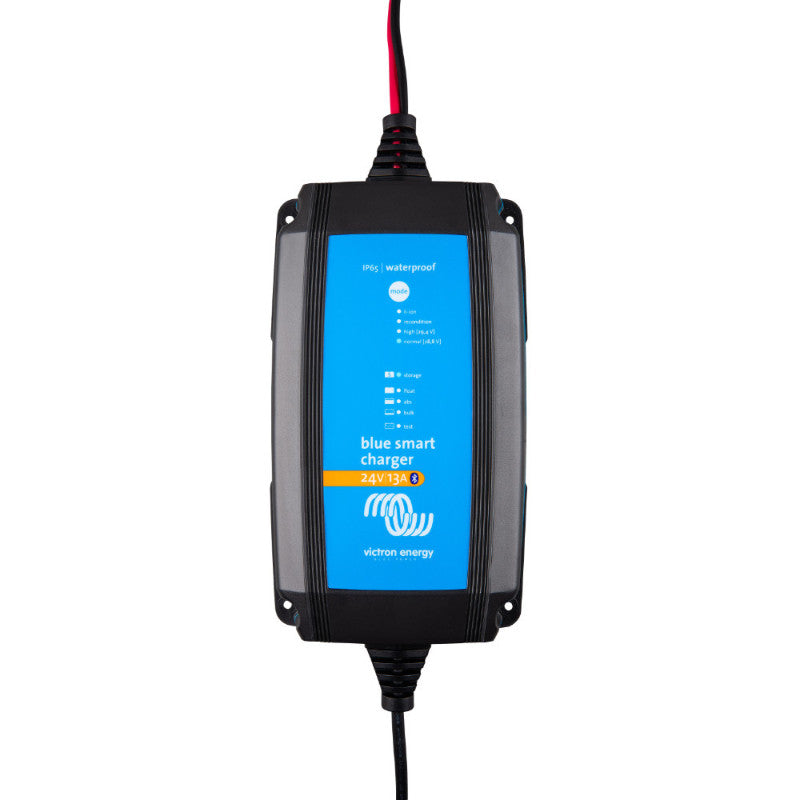

Close The Blue Smart IP65 Charger 24/13 (1) 230V UK + DC connector from Victron Energy is an advanced charger designed for 24V batteries, distinguished by its innovative approach to power management and intuitive operation via mobile devices. Thanks to the built-in Bluetooth module, users can fully manage the charger using the Victron Connect app, allowing them to constantly monitor charging status and adjust settings to their needs. This level of control not only enables convenient remote management but also increases the efficiency of the charging process, extending battery life. The Blue Smart IP65 is designed for a wide range of applications – ideal for both workshop equipment and vehicles such as motorcycles, campers, and boats. This charger offers an intelligent, seven-stage charging algorithm that adapts the charging process, ensuring the appropriate conditions at each stage. This advanced approach reduces battery wear by preventing positive plate corrosion and sulfation. Additionally, storage mode keeps the battery in optimal condition even when not in use for extended periods, which is especially useful for those who use vehicles or equipment seasonally. High Performance and Safety at the Highest Level With an efficiency of up to 94%, the Blue Smart IP65 charger generates minimal heat, which is three times better than traditional chargers. Once the battery is fully charged, the charger's power consumption drops to just 0.5W, significantly reducing operating costs and environmental impact. A unique recovery function also revives deeply discharged batteries that might otherwise be considered permanently damaged. The Blue Smart IP65 is also protected against overheating and reverse polarity, providing users with an additional level of protection. With the press of a button, the charger can also be adapted to charge LiFePO4 batteries, expanding its range of applications and making it a versatile device suitable for a variety of battery types. The IP65 rating guarantees dust and splash resistance, allowing you to use the device in harsh environments without fear of damage.

Technical Specifications

• Model: Blue Smart IP65 Charger 24V/13A (1) UK
• Input Voltage Range and Frequency: 230 VAC
• Efficiency: 94%
• Standby Power Consumption: 0.5 W
• Minimum Battery Voltage: Starts charging when voltage drops to 0 V
• "Absorption" Charging Voltage:
  • Normal: 28.8 V
  • High: 29.4 V
  • Li-ion: 28.4 V
• "Buffering" charging voltage:
  • Normal: 27.6 V
  • High: 27.6 V
  • Li-ion: 27.0 V
• Charging voltage in "Storage" phase:
  • Normal: 26.4 V
  • High: 26.4 V
  • Li-ion: 27.0 V
• Charging current: 13 A
• Low current mode: 4 A
• Temperature compensation: 32 mV/ºC (lead-acid batteries only)
• Power supply mode: Yes
• Reverse current discharge: 0.7 Ah/month (1 mA)
• Protection: Reverse polarity, output short circuit, overtemperature
• Operating temperature range: -40 to +60 °C (full rated capacity up to 30 °C)
• Humidity: Max. 95% (non-condensing)
• Charging algorithm: Intelligent, 7-step
• Bluetooth: -4 dBm, 2402 – 2480 MHz

Other

• Battery connection: 1.5 m black and red cable
• 230 VAC power connection: 1.5 m cable with CE 7/16, CE 7/17, BS 1363 (UK) plug or AS/NZS 3112 plug
• Protection category: IP65 (splash and dust proof)
• Weight: 1.9 kg
• Dimensions (H x W x D): 75 x 140 x 240 mm
The Blue Smart IP65 24V/13A charger from Victron Energy is an advanced battery charging management device with high energy efficiency and flexibility. Thanks to Bluetooth and a seven-stage charging algorithm, it offers complete control over charge status and increases battery life. Ideal for a variety of applications, it is reliable in both vehicles and workshop equipment, making it one of the most versatile chargers on the market.
