- by Victron Energy
LiFePO4 battery 12.8V/180Ah - Smart
- Price: regular price €4.365,65
- SKU: 3998
- Unit price:
Subtotal:
€4.365,65

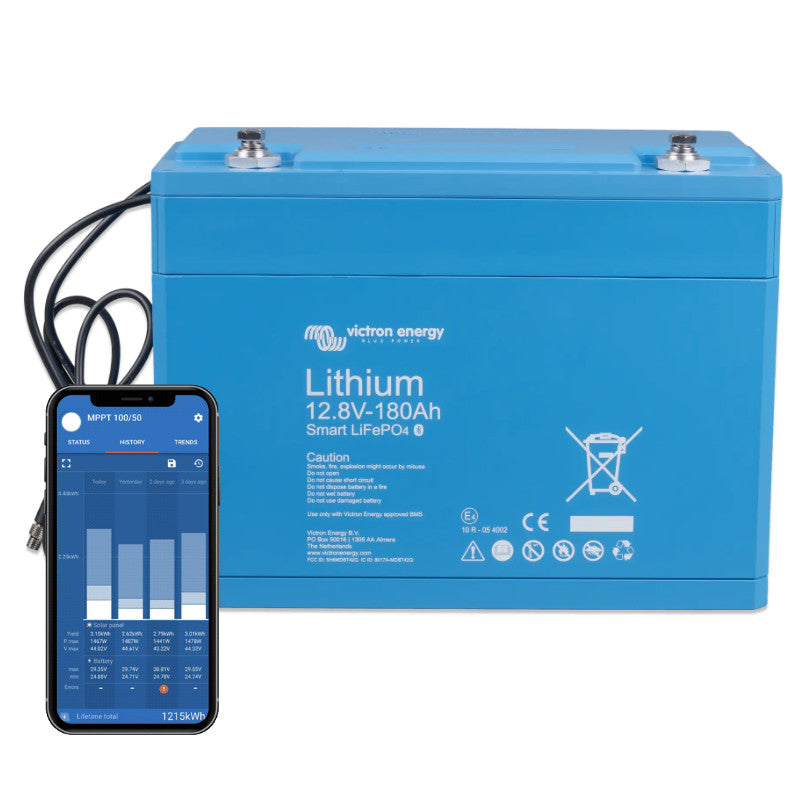

Smart 180Ah 12V LiFePO4 Battery
Battery Management System (BMS)
The battery is equipped with an advanced battery management system (BMS) that protects against overcharging, deep discharge, overheating, and short circuits.Smart Bluetooth
The built-in Bluetooth module allows remote battery monitoring via the VictronConnect app on your smartphone or tablet – check the charge status, history, and operating parameters.Compact Design
LiFePO₄ is significantly lighter than traditional AGM/GEL batteries. Ideal for campers, boats, off-grid applications, and mobile installations.Exceptional Durability and Performance
Lithium-Ion-Phosphate (LiFePO₄) technology allows for over 3,000 cycles at 80% DoD, which translates into many years of operation without performance degradation – several times more than AGM/GEL batteries.Connectable and Scalable
Batteries can be safely connected in series (higher voltage) or parallel (higher capacity) – up to 20 units in a single bank. The perfect solution for 12V, 24V, and 48V systems. LiFePO₄ from Victron Energy provides exceptional charge and discharge efficiency, minimizing losses and maximizing energy availability – in both mobile and stationary systems. Safety and the Environment LiFePO₄ technology is one of the safest lithium technologies available on the market. Overheating resistance, no gassing, low fire risk, and high recyclability make it an eco-friendly choice for years to come.Main Features:
- Capacity: 180 Ah – high energy in a compact size.
- Technology: LiFePO₄ – durability, safety, no risk of fire.
- Bluetooth Smart – monitor from your phone with VictronConnect.
- Built-in BMS – automatic cell balancing and protection.
- 3000+ cycles at 80% DoD – exceptional durability.
- Connect up to 20 cells – connect banks in series or in parallel.
- Efficiency up to 92% – more energy from each cycle.
- Ultra-light housing – easy installation, lower weight.
- Wide temperature range – resistance to field conditions.
Technical Specifications:
- Parameters / Model: Victron Energy 180Ah LiFePO4
- Nominal Voltage: 12.8 V
- Nominal Capacity @ 25°C: 180 Ah
- Nominal Capacity @ 0°C: 150 Ah
- Nominal Capacity @ -20°C: 90 Ah
- Nominal Energy @ 25°C: 2304 Wh
Cyclic Life (Efficiency ≥ 80%)
- 80% DoD: 2500 cycles
- 70% DoD: 3000 cycles
- 50% DoD: 5000 cycles
Discharge
- Maximum continuous discharge current: 360 A
- Recommended continuous discharge current: ≤180 A
- End-of-discharge voltage: 11.2 V
- Internal resistance: 0.9 mΩ
Operating conditions
- Operating Temperature: Discharging: -20°C to +50°C, Charging: +5°C to +50°C
- Storage Temperature: -45°C to +70°C
- Humidity (non-condensing): Max. 95%
- Protection Class: IP22
Charging
- Charging Voltage: 14 V – 14.4 V (14.2 V recommended)
- Float Voltage: 13.5 V
- Maximum Charging Current: 360 A
- Recommended Current Charging current: ≤90 A
ul>
Other
- Maximum storage time at 25°C: 1 year
- BMS connection: Male + female cable with M8 round connector (50 cm)
- Power connection: M8 threaded inserts
- Dimensions (H x W x D): 237 × 321 × 152 mm
- Weight: 18 kg
Technical Information
Instruction Manual
Brand Information
