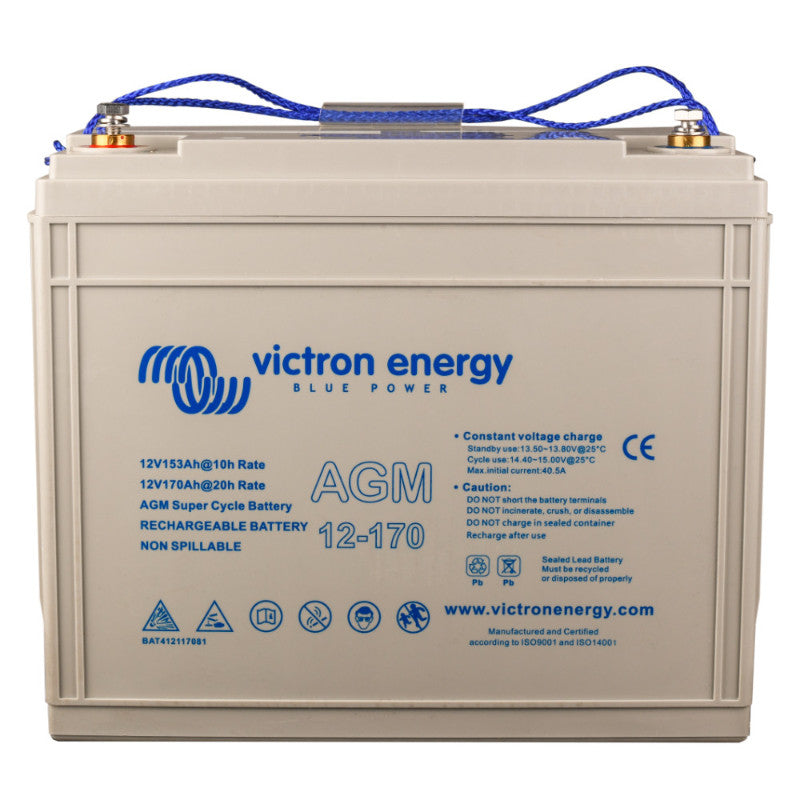

Choosing the right battery is a key decision when designing independent energy systems, both in solar installations and in and recreational vehicles. Victron Energy has created a unique product that performs perfectly in the harshest conditions. The 12V/170Ah AGM Super Cycle battery features advanced electrochemical technology that allows for repeated deep discharges while maintaining an extended lifespan. Its unique design ensures long-lasting operation, even in off-grid systems, where stability and performance are paramount. What sets this model apart? Above all, its ability to operate in a variety of environments. Thanks to its shock resistance and stability in changing weather conditions, this battery is an ideal solution for owners of recreational vehicles, boats, and backup power systems. A low self-discharge of just 2% per month means the battery can be stored for extended periods without losing its full capacity. This is crucial for photovoltaic systems, which may be idle for part of the year. The AGM Super Cycle technology used in this model guarantees durability even under extreme discharge cycles. Laboratory tests have confirmed that the battery can withstand up to 300 full discharge cycles to 100% DoD (Depth of Discharge). Modern electrolyte additives significantly reduce the risk of sulfation, allowing for longer and more efficient operation. This makes the Victron Energy AGM Super Cycle 12V/170Ah an excellent choice for UPS systems where power reliability is crucial. VRLA and AGM Technology: Innovation in Action One of the key features of the Victron Energy AGM Super Cycle is its use of modern VRLA technology. This system, equipped with a valve that allows the release of excess gases, protects the battery from damage. Combined with AGM (Absorbent Glass Mat), this technology significantly reduces internal electrical resistance, making the battery exceptionally efficient in systems requiring rapid and intensive discharge. Example applications include inverters, thrusters, and winches, where reliability and high efficiency are crucial. Another advantage of this model is its low internal resistance, which allows for efficient operation even under intense current loads. This makes the battery ideal for photovoltaic systems where high power and efficiency are required on a daily basis. Its long life in float mode and a designed lifespan of 12 years mean that investing in this model is a long-term benefit.

Technical Specifications

• Parameters / Model: AGM 12-170 Battery
• Operating Voltage [V]: 12 V
• Capacity [Ah]: 170 Ah
• Cyclic Charging Voltage [V]: 14.2 - 14.6 V
• Standby Charging Voltage [V]: 13.5 - 13.8 V
• Storage Voltage [V]: 13.2 - 13.5 V

Installation and Dimensions

• Dimensions WxHxD [mm]: 336 x 280 x 172 mm
• Weight [kg]: 45 kg

Battery endurance

• 1000 cycles at 40% discharge
• 700 cycles at 60% discharge
• 300 cycles at 100% discharge
• Designated lifespan: 12 years (FLOAT mode)

Victron Energy 12V/170Ah AGM Super Cycle Battery is a modern and durable battery that is suitable for photovoltaic systems, recreational vehicles, and UPS systems. Thanks to advanced VRLA and AGM technology, low resistance, and exceptional deep discharge resistance, this battery offers the highest level of reliability.
